德國HYDRO-BIOS公司——多通道水樣采集器
Multi Water Sampler

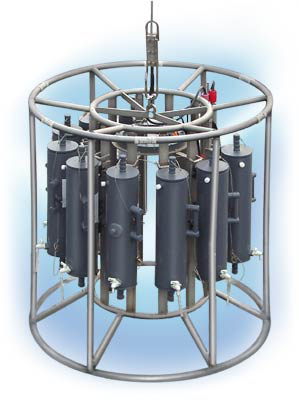

MWS多通道水樣采集器采水器用于在水體中進行水樣分層采集工作。多通道采水器由一組堅固的、裝有12/24個支架的不銹鋼陣列組成，支架上可以安裝容量為5L或10L的采樣瓶，用來在一次操作中完成12/24個不同深度水樣的采集工作。
多通道水樣采集器采水器裝有一個馬達驅動的自動釋放裝置，上面集成一個壓力傳感器，傳感器的測量范圍可根據用戶的工作要求進行選擇。多通道采水器的耐壓水深：3000米，6000米，11000米。多通道采水器的整套系統工作時電量消耗低，并且可以在溫度為-40℃~+85℃的環境中正常工作。
MWS多通道水樣采集器采水器可以由甲板控制單元上的控制按鈕控制，進行在線實時采樣；也可按照預先設定的采樣深度間隔進行離線自容式采樣。
多通道水樣采集器采水器控制單元：

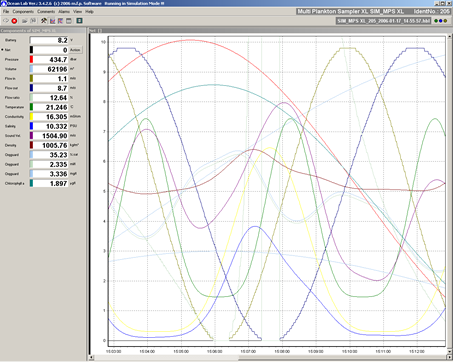

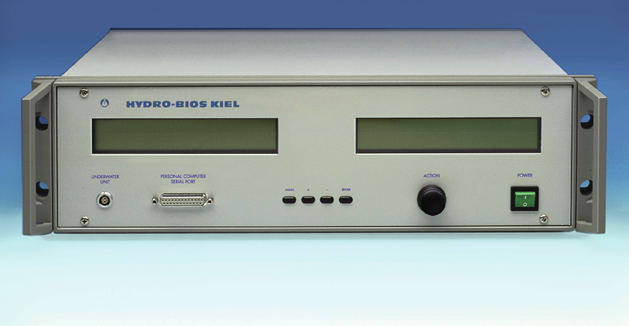

OceanLab數據處理軟件 甲板單元
多通道采水器選配件：
CT-組件，完全整合在多通道水樣采集器采水器的驅動單元上，由一個電導率傳感器、一個溫度傳感器和一個電路板組成。
各種參數的傳感器，如溫度、鹽度、葉綠素、濁度等
容量16M為數據存儲器
多通道采水器技術參數：
尺寸 | MWS12：直徑140cm,高度160cm；MWS24：直徑180cm,高度160cm |
空重 | MWS12：約100kg（不帶采樣瓶）；MWS24：約200kg（不帶采樣瓶） |
操作水深 | 標準配置：3000米；可選配置：6000米，11000米 |
陣列 | 不銹鋼材質 |
馬達單元 | 由鈦制成,電池供電(3×DL123A/3V) |
甲板控制單元 | 金屬艙室；帶一個控制采樣器開關的按鈕；顯示采樣瓶序號、壓力和電池狀態帶發光二極管背景燈的液晶顯示屏；與PC機的接口為RS232；由85-260V交流電或電池 |
壓力傳感器 | 0-3000dbar±0.1%f.s.(標準)；0-6000dbar±0.1%f.s.(可選)；0-11000dbar±0.1%f.s.(可選)； |
多通道采水器獨特之處：
√ 操作簡單
√ 雙向通信
√ 耐壓水深：3000米，6000米，11000米（可選）
√ 長距離(>10000米)遙感數據傳輸
√ 電量消耗低
√ 水下單元有電池操作
√ 電子單元可在溫度為-40℃~+85℃的環境中正常工作
√ 獲CE國際質量管理標準體系認證，品質保證
MWS多通道水樣采集器采水器訂購信息：
436 912 MWS 12多通道水樣采集器采水器
帶微處理器和外置電池組的馬達驅動單元；
集成壓力傳感器；
通過PC機控制的可編程式深度依賴性采樣間隔；
16兆數據存儲器；
帶甲板控制單元，85-260V交流電或電池供電；
可安裝采樣瓶：12只，5~10L（注意：采樣瓶需單獨訂購）
436 924 MWS 24多通道水樣采集器采水器
帶微處理器和外置電池組的馬達驅動單元；
集成壓力傳感器；
通過PC機控制的可編程式深度依賴性采樣間隔；
16兆數據存儲器；
帶甲板控制單元，85-260V交流電或電池供電；
可安裝采樣瓶：24只，1.7~10L（注意：采樣瓶需單獨訂購）
代表文獻：
1.Gradinger, Jiirgen Lenz,1989.Picocyanobacteria in the high Arctic.Marine Ecology. Progress series.52:99-101.
2.R. R. Gradinger, M. E. M. Baumann,1991.Distribution of phytoplankton communities in relation to the large-scale hydrographical regime in the Fram Strait.Marine Biology.111(2),311-321.
3.R. J. Gowen, B.M. Stewart, D.K. Mills and P. Elliott,1994.Regional differences in stratification and its effect on phytoplankton production and biomass in the northwestern Irish Sea.Journal of Plankton Research.17(4):753-769.
4.R.J. Gowen, G. McCullough, M. Dickey-Collas and G.S. Kleppel,1997.Copepod abundance in the western Irish Sea: relationship to physical regime, phytoplankton production and standing stock.Journal of Plankton Research.20(2):315-330.
5.K. Richardson, S.H. Jónasdóttir, S.J. Hay, A. Christoffersen,1999.Calanus finmarchicus egg production and food availability in the Faroe–Shetland Channel and northern North Sea: October–March.Fisheries Oceanography.8(1):153–162.
6.M. Trimmer, R. J. Gowen, B. M. Stewart, D. B. Nedwell,1999.The spring bloom and its impact on benthic mineralisation rates in western Irish Sea sediments.Marine Ecology Progress series.185:37-46.
7.Harri T. Kankaanp??, Vesa O. Sipi?, Jorma S. Kuparinen, Jennifer L. Ott, and Wayne W. Carmichael ,1999.Nodularin analyses and toxicity of a Nodularia spumigena (Nostocales, Cyanobacteria) water-bloom in the western Gulf of Finland, Baltic Sea, in August 1999.Phycologia.40(3):268-274.
8.Andrea M. Sass, Henrik Sass, Marco J. L. Coolen, Heribert Cypionka, and J?rg Overmann,2001.Microbial Communities in the Chemocline of a Hypersaline Deep-Sea Basin (Urania Basin, Mediterranean Sea).Applied and Envioronmental Mcrobiology.67(12):5392-5402.
9.Victor W Truesdale, Günther Nausch, Alex Baker,2001.The distribution of iodine in the Baltic Sea during summer.Marine Chemistry.74(2–3):87–98.
10.Ann K. Manske, Jens Glaeser, Marcel M. M. Kuypers and J?rg Overmann,2005.Physiology and Phylogeny of Green Sulfur Bacteria Forming a Monospecific Phototrophic Assemblage at a Depth of 100 Meters in the Black Sea.Applied and Envioronmental Mcrobiology.71(12):8049-8060.
11.Maik Inthorn, Michiel Rutgers van der Loeff, Matthias Zabel,2006.A study of particle exchange at the sediment–water interface in the Benguela upwelling area based on 234Th/238U disequilibrium.Deep Sea Research Part I: Oceanographic Research Papers.53(11):1742–1761.
12.Tim J. Waite, Victor W. Truesdale, Jon Olafsson,2006.The distribution of dissolved inorganic iodine in the seas around Iceland.Marine Chemistry.101(1–2):54–67.
13.MAJANEVA Markus, AUTIO Riitta, HUTTUNEN Maija, KUOSA Harri, KUPARINEN Jorma,2009.Phytoplankton monitoring: the effect of sampling methods used during different stratification and bloom conditions in the Baltic Sea.Boreal environment research.14(2):313-322.
14.Bertics, Victoria J., L?scher, C. R., Salonen, I., Dale, Andy W., Gier, Jessica, Schmitz, R.A. and Treude, Tina,2013.Occurrence of benthic microbial nitrogen fixation coupled to sulfate reduction in the seasonally hypoxic Eckernf?rde Bay, Baltic Sea.Biogeosciences(BG).10(3):1243-1258.
15.W. DAVISON,1977.Sampling and handling procedures for the polarographic measurement of oxygen in hypolimnetic waters.Freshwater Biology.7(4):393–401.
16.Austin B. M. Egbore,1978.Seasonal variations in the density of a small West African lake.Hydrobiologia.61(3):195-203.
17.Dr. U. Zaiss, P. Winter, H. Kaltwasser,1982.Microbial methane oxidation in the River Saar.Journal of Basic Microbiology.22(2):139–148.
18.V.F. Samanidou & I.N. Papadoyannis,1992.Study of heavy metal pollution in the waters of Axios and Aliakmon rivers in northern Greece.Journal of Environmental Science and Health . Part A: Environmental Science and Engineering and Toxicology.27(3):587-601.
19.Nilgün Kazanci, Reiner-Hartmut Plasa, Eike Neubert & Afife ?zbirak,1992.On the limnology of Lake K?ycegiz (SW Anatolia).Zoology in the Middle East.6(1):109-126.
20.Eduardo González-Mazo, Jesus María Forja, Abelardo Gómez-Parra ,1998.Fate and Distribution of Linear Alkylbenzene Sulfonates in the Littoral Environment.Environ. Sci. Technol..32(11):1636–1641.
21.V.M León, E González-Mazo, A Gómez-Parra,2000.Handling of marine and estuarine samples for the determination of linear alkylbenzene sulfonates and sulfophenylcarboxylic acids.Journal of Chromatography A.889(1-2):211–219.
22.Claus-Peter Stelzer,2001.RESOURCE LIMITATION AND REPRODUCTIVE EFFORT IN A PLANKTONIC ROTIFER.Ecology.82(9):2521–2533.
23.Udo Noack, Thomas Geffke, Ramani Balasubramanian, Jutta Papenbrock, Mike Braune, Dirk Scheerbaum,2004.Effects of the Herbicide Metazachlor on Phytoplankton and Periphyton Communities in Outdoor Mesocosms.Acta hydrochimica et hydrobiologica.31(6):482–490.
24.L. R. Rodríguez-Gallego, N. Mazzeo, J. Gorga, M. Meerhoff, J. Clemente, C. Kruk, F. Scasso, G. Lacerot, J. García, F. Quintans,2004.The effects of an artificial wetland dominated by free-floating plants on the restoration of a subtropical, hypertrophic lake.Lakes & Reservoirs: Research & Management.9(3-4):203–215.
25.Kristina Samuelsson, Johnny Berglund, and Agneta Andersson,2006.Factors structuring the heterotrophic flagellate and ciliate community along a brackish water primary production gradient.Journal of Plankton Research.28(4):345-359.
26.George Kehayias, Ekaterini Chalkia, Stavroula Chalkia, George Nistikakis, Ierotheos Zacharias, Anastasios Zotos,2008.Zooplankton dynamics in the upstream part of Stratos reservoir (Greece).Biologia.63(5):699-710.
27.MAJANEVA Markus, AUTIO Riitta, HUTTUNEN Maija, KUOSA Harri, KUPARINEN Jorma,2009.Phytoplankton monitoring: the effect of sampling methods used during different stratification and bloom conditions in the Baltic Sea.Boreal environment research.14(2):313-322.
更多關鍵詞：小型分層采水器,Multi Water Sampler,CTD采水器,德國HYDRO-BIOS公司,分層采水器,多通道采水器,水樣采集,多筒采水器,微型多通道水樣采集器,多瓶采水器,玫瑰花型采水器,多通道水樣采集器,多功能水質采樣器,水質等比例采樣器
